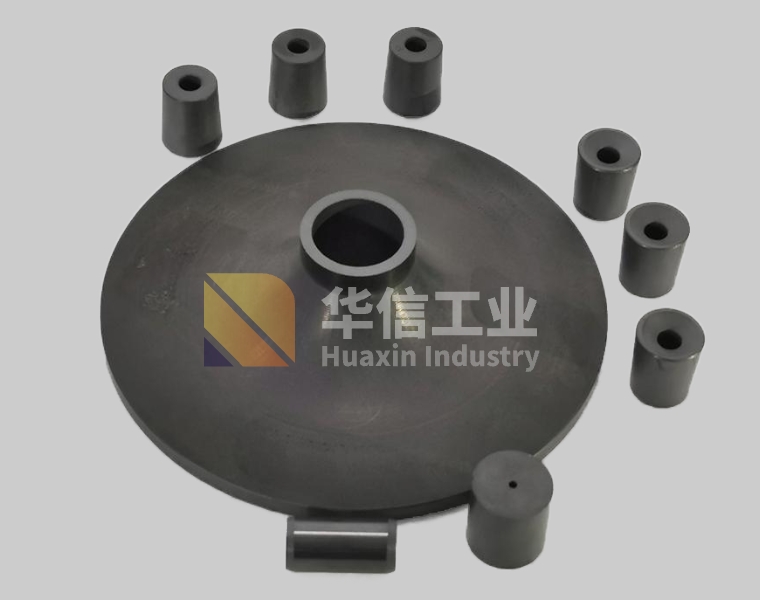

Slurry atomizing tray/nozzle
The silicon carbide slurry atomizing tray/nozzle is made of direct isostatic pressing and non-pressing sintering, with good performance
Excellent. The inner and outer diameter, end face and surface are finished, and the surface is polished to meet the different design requirements of users.
- Typical application
- Features and advantages
- Specification
-
Typical application
Slurry atomizing tray/nozzle for spray granulation of SIC slurry, can also be used for spray granulation of other ceramic slurry.
Application industry: Technical ceramics, lithium battery material field. -
Features and advantages
The maximum diameter of silicon carbide slurry atomizing disk can be OD300mm, the accuracy is 0.02mm.
Silicon carbide slurry nozzle for surface polishing, surface roughness Ra less than 0.2.
Silicon carbide ceramic nozzles are manufactured for strict density, size and surface fluorescence penetration detection.
Silicon carbide ceramics density of 3.15g/cm3, Vickers hardness of 23GPa or more, high wear resistance, no metal ions introduced.
The service life of silicon carbide ceramic nozzles can reach more than one year, which is more than 2 times higher than that of alloy nozzles (depending on different media). -
Specification
